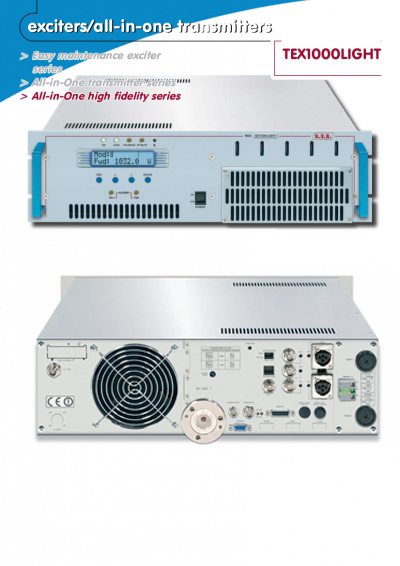

TEX1000LIGHT

Parameter

Value

GENERALS

Frequency range



FCC - CCIR - OIRT - JPN – CHN

Rated output power



1000 W

Modulation type



Direct carrier frequency

Operational Mode



Mono, Stereo, Multiplex

Environmental working conditions



-10 °C  to + 50 °C / 95% relative Humidity non condensing

Frequency programmability



From software, with 10 kHz steps

Frequency stability

WT from -10°C to 50°C

±1 ppm

Modulation capability



150 kHz  Stereo, 180 kHz Mono/MPX

Pre-emphasis mode



0  μS, 50 μS  (CCIR), 75 μS  (FCC)

POWER REQUIREMENTS

AC Power Input

AC Supply Voltage

80 ÷ 260 VAC  Full Range

Active Power Consumption

1650 W

Overall Efficiency

62 %

Connector

Terminal Block

MECHANICAL DIMENSIONS

Phisical Dimensions

L x H x W

483 mm x 132 mm x 525 mm

Weight



about 24 kg

Cooling



Forced, with internal fan

Acoustic Noise



  < 75 dBA

AUDIO INPUTS

Left/Mono & Right



10 kOhm or 600Ohm (XLR F) Level:-13 to +13 dBu

MPX



10 kOhm or 50 Ohm (BNC) Level: -13 to +13 dBu @ 75 KHz FM

SCA/RDS



10 kOhm (2x BNC) Level: -8 to +13 dBu @ 75 KHz FM

AES/EBU (OPTIONAL)



110 Ohm  (XLR F)

TOSLINK (OPTIONAL)



TOSLINK F05 - EIAJ

OUTPUTS

RF Output



50 Ohm (7/16” EIA flange type)

RF Monitor



50 Ohm (BNC) approx. -60 dBc

Pilot output



>5 kOhm (BNC) approx.1Vpp

FUSES

On Mains



2 External fuse F 25 T – 10x38 mm

On Service



1 External fuse F 1 T - 5x20 mm

On PA Supply



2 Internal fuses F 10 A 10 x 38 mm

On Driver Supply



1Internal fuse F 1 A 2 x 20 mm
