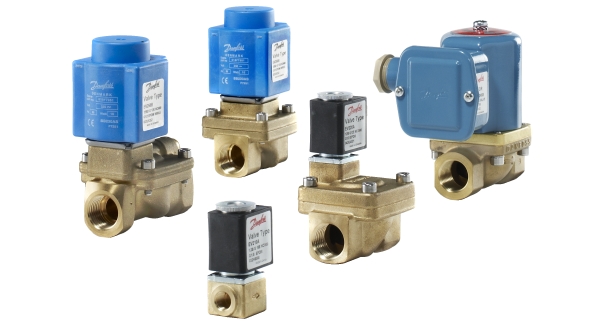

Solenoid Valves EV210A, EV220A, EV310A, EV210B, EV220B, EV225B, EV250B, EV310B

Danfoss solenoid valve bodies and electrical coils are normally supplied separately and then combined.

They are assembled quickly and simply without tools, providing optimum product flexibility and availibility.
If a coil does need to be replaced, it can be done without stopping or draining any system.

The solenoid valves are also available as assembled units if required.

Data sheet/ Technical leaflet EV250B

Data sheet/ Technical leaflet 2-way solenoid valves with NPT thread

Instruction/ User guide EV250B NPT

Instruction/ User guide EVI (EV210B) NC/NO

Instruction/ User guide EVSI(EV220B) 6-22 NC/NO

Instruction/ User guide EVSI (EV220B) 15-50 NC/NO

Instruction/ User guide EVSIS 3, EVSIS 6-25; (EV215B 3, EV225B 6-25)

Instruction/ User guide EVSI(EV220B) 6-22 NC/NO

Instruction/ User guide EVSIS 3, EVSIS 6-25; (EV215B 3, EV225B 6-25)

Instruction/ User guide EVSI (EV220B) 15-50 NC/NO

Instruction/ User guide EVI (EV210B) NC/NO

Instruction/ User guide EV250B NPT

Brochure Sensors, Valves & Switches - Off Highway Equipment

EV210A Direct-operated 2/2-way compact solenoid valves
EV210A covers a wide range of small, direct-operated 2/2-way solenoid valves for use in industrial machinery.
The compact design together with the broad range of coilsmeans that EV210A covers a broad variety of industrial applications.
• 2/2-way
• Compact dimensions
• Direct-operated
• DN 1.2 - DN 3.5
• G 1/8 to G 1/4
• Brass or stainless steel valve body
• NC (normally closed) and NO (normally open) versions

EV220A Servo-operated 2/2-way solenoid valves

EV220A is a compact indirect servo-operated 2/2-way solenoid valve program,
especially designed for use in machines and equipment with limited space.
• 2/2-way
• Servo-operated
• DN 6 - DN 50
• G 1/4" to G 2"
• Brass valve body
• NC (normally closed) and NO (normally open) versions
• ISO 228/1 or NPT thread connection

EV310A Direct-operated 3/2-way compact solenoid valves
EV310A covers a wide range of small competitive, direct-operated 3/2-way solenoid valves for use within industrial applications,
for example pilot valve applications.
• 3/2-way
• Direct-operated
• DN 1.2 - DN 2
• G 1/8" to G 1/4"
• Brass or stainless steel valve body
• NC (normally closed) and NO (normally open) versions

EV210B Direct-operated 2/2-way solenoid valves
EV210B covers a wide range of direct-operated 2/2-way solenoid valves for universal use. EV210B is a real robust valve program with high performance and can be used in all kind of tough working conditions.
• 2/2-way
• High Performance series
• Direct-operated
• DN 1.5 - DN 25
• Brass or stainless steel valve body
• NC (normally closed) and NO (normally open) versions
• ISO 228/1 G 1/8" to G 1"
• UL listed version with NPT. for North America (EVI)

EV220B (6-22 series) Servo-operated 2/2-way solenoid valves
EV220B 6-22 is a direct servo-operated 2/2-way solenoid valve program with connections from1/4" to 1".
This program is especially for OEM applications demanding a robust solution and moderate flow rates.
• 2/2-way
• Servo-operated
• DN 6 - DN 22
• Brass or DZR (de-zincification resistant) brass valve body
• NC (normally closed) and NO (normally open) versions
• ISO 228/1 or NPT thread connection (EVSI and EVSI-U)

EV220B (15-50 series) Servo-operated 2/2-way solenoid valves

EV220B 15-50 is a universal indirect servo-operated 2/2-way solenoid valve program.
Valve body in brass, dezincification resistant brass and stainless steel ensures
that a broad variety of application can be covered.

Built-in pilot filter as standard,
adjustable closing time and enclosures up to IP67
ensures optimal performance even under critical working conditions.

• 2/2-way
• Servo-operated
• DN 15 - DN 50
• Valve body available in brass, DZR brass, gun metal or
stainless steel
• NC and NO versions
• ISO 228/1 or NPT thread connection (EVSI and EVSI-U)
• Built in filter for protection of pilot system
• Water hammer damped
• Adjustable closing time available

EV225B Servo-operated 2/2-way solenoid valves for steam
EV225B is a servo-operated 2/2-way solenoid valve for use in steamapplication. The design is based on a PTFE diaphragm concept,

ensuring high reliable function even in connection with contaminated steam.
Valve body in dezincification resistant brass and valve seats made in stainless steel for ensuring a long life even in connection with aggressive steam media. Coil type BR can be used on EV225B.
• 2/2-way
• Specifically designed for steamapplications
• Servo-operated
• DN 6 - DN 25
• G 1/4" to G 1"
• DZR brass valve body
• NC (normally closed)
• ISO 228/1 or UL listed version with NPT for North America
(EVSIS)

EV250B Assisted lift operated 2/2-way solenoid valves
EV250B with assisted lift can operate from zero and up to 10 bar differential pressure.
This 2/2-way valve program is especially to use in closed circuits with low differential pressure,
but demanding moderate flow rates.
Valve body in dezincification resistant brass for ensuring a long life even in connection with aggressive steam media.
EV250B is compatible with the broad Danfoss coil program with enclosures from IP00 up to IP67.
Medium temperatures up to 140 °C (low pressure steam).
• 2/2-way
• assisted lift operated
• DN 10 - DN 22
• DZR brass valve body
• NC (normally closed) or NO (normally open)
• From zero differential pressure
• Especially suitable for closed circuits and for emptying tanks
• Available with WRAS, VA and UL approvals
• ISO or NPT thread connections

EV310B Direct-operated 3/2-way solenoid valves
EV310B covers a wide range of direct-operated 3/2-way solenoid valves for universal use.
EV310B is a real robust valve programwith high performance and can be used in all kind of tough working conditions.
Clip-on coils can not be used on EV310B.
• 3/2-way
• Direct-operated
• DN 1.5 - DN 3.5
• Brass valve body
• Thread (G 1/8" to G 3/8") or flange (32x32 mm) connections
• NC (normally closed) and NO (normally open) versions
• Manual override versions

Complete valves, Type EV220B, EV210B, EV225B and EV250B
Our solenoid valve programincludes valves suitable for most open and closed systems.
The programcomes complete with the clip-on coil and IP65
electrical plug and has been carefully designed to simplify product selection.
Appendix “02” for 24 V dc, “16”/”82” for 24 V ac and “31” / “84” for 230 V ac
To select the right valve all that is required to be known is:
• Open or closed pipe work system
• Pipe size
• Electrical voltage
If the system parametres are unknown, choose the safe solution -
EV250B NO or NC version
